Home / Products / Switches / Rotary Switches / 71ADF36-02-1-AJN

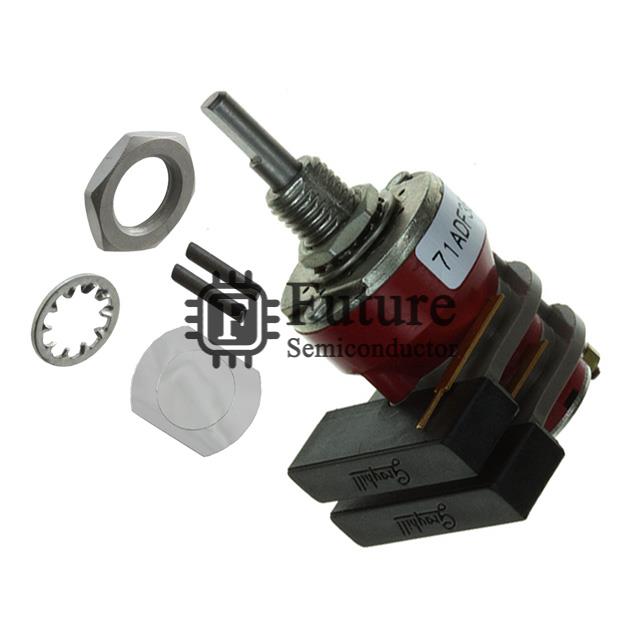

Grayhill Inc. 71ADF36-02-1-AJN

Name: 71ADF36-02-1-AJN
Brand: Grayhill Inc.
SKU: 71ADF36-02-1-AJN
Price: 22.768 USD
Availability: InStock
Rating: 4.8 (420 reviews)

MFG Part Number: 71ADF36-02-1-AJN

Available Quantity: 48630 Pieces

Reference Price: USD 22.768

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Grayhill Inc.

Brief Description: 71 SWITCH ROTARY 2-10POS 250MA 115V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Rotary Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 71ADF36-02-1-AJN.pdf

Request Quotation for 71ADF36-02-1-AJN

Company Name

Contact Person

Phone Number

Address

Email

Message

71ADF36-02-1-AJN Specifications

Manufacturer Part Number	71ADF36-02-1-AJN
Future Part Number	FT-71ADF36-02-1-AJN
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	71
71ADF36-02-1-AJN Status (Lifecycle)	In Stock
Part Status	Active
Number of Positions	2 ~ 10
Index Stops	Adjustable
Number of Decks	2
Number of Poles per Deck	1
Circuit per Deck	SP10T
Contact Timing	Non-Shorting (BBM)
Current Rating	250mA (AC/DC)
Voltage Rating - AC	115V
Voltage Rating - DC	30V
Actuator Type	Flatted (3.17mm Dia)
Actuator Length	9.53mm
Angle of Throw	36°
Contact Material	Silver Alloy
Contact Finish	-
Mounting Type	Panel Mount, Through Hole, Right Angle
Termination Style	PC Pin
Features	-
Depth Behind Panel	24.87mm
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
71ADF36-02-1-AJN Weight	Contact Us
Replacement Part Number	71ADF36-02-1-AJN-FT
