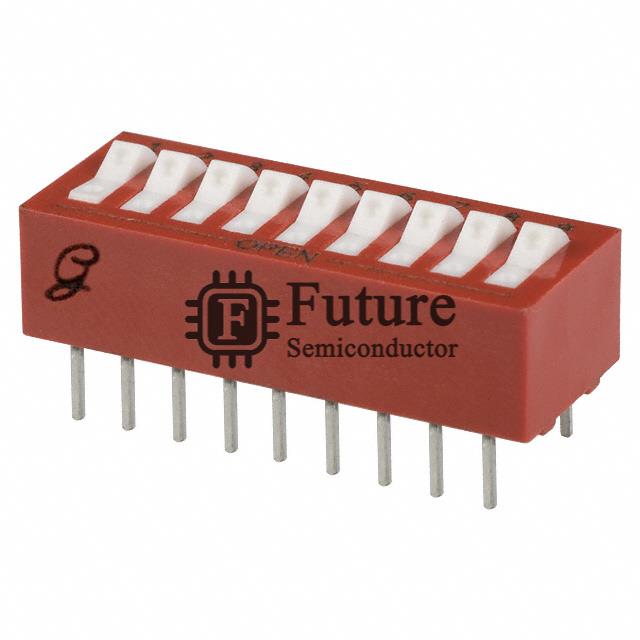

Grayhill Inc. 76SB09S

Name: 76SB09S
Brand: Grayhill Inc.
SKU: 76SB09S
Availability: InStock
Rating: 4.8 (602 reviews)

MFG Part Number: 76SB09S

Available Quantity: 84070 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Grayhill Inc.

Brief Description: 76 SWITCH ROCKER DIP SPST 150MA 30V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: DIP Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 76SB09S.pdf

Request Quotation for 76SB09S

Company Name

Contact Person

Phone Number

Address

Email

Message

76SB09S Specifications

Manufacturer Part Number	76SB09S
Future Part Number	FT-76SB09S
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	76
76SB09S Status (Lifecycle)	In Stock
Part Status	Obsolete
Circuit	SPST
Number of Positions	9
Current Rating	150mA
Voltage Rating	30VDC
Actuator Type	Rocker
Actuator Level	Raised
Contact Material	Copper Alloy
Contact Finish	Gold
Height Above Board	0.315" (8.00mm)
Mounting Type	Through Hole
Termination Style	PC Pin
Pitch	0.100" (2.54mm), Full
Washable	Yes
Features	Tape Seal
Operating Temperature	-40°C ~ 85°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
76SB09S Weight	Contact Us
Replacement Part Number	76SB09S-FT
