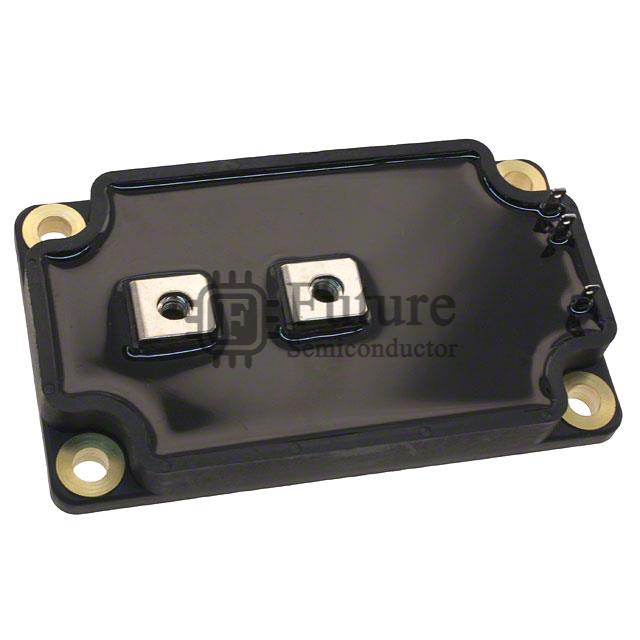

Microsemi Corporation APTM10UM01FAG

Name: APTM10UM01FAG
Brand: Microsemi Corporation
SKU: APTM10UM01FAG
Price: 153.192 USD
Availability: InStock
Rating: 4.9 (644 reviews)

MFG Part Number: APTM10UM01FAG

Available Quantity: 73780 Pieces

Reference Price: USD 153.192

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: - MOSFET N-CH 100V 860A SP6

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: APTM10UM01FAG.pdf

Request Quotation for APTM10UM01FAG

Company Name

Contact Person

Phone Number

Address

Email

Message

APTM10UM01FAG Specifications

Manufacturer Part Number	APTM10UM01FAG
Future Part Number	FT-APTM10UM01FAG
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
APTM10UM01FAG Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	860A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.6 mOhm @ 275A, 10V
Vgs(th) (Max) @ Id	4V @ 12mA
Gate Charge (Qg) (Max) @ Vgs	2100nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	60000pF @ 25V
FET Feature	-
Power Dissipation (Max)	2500W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SP6
Package / Case	SP6
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
APTM10UM01FAG Weight	Contact Us
Replacement Part Number	APTM10UM01FAG-FT
