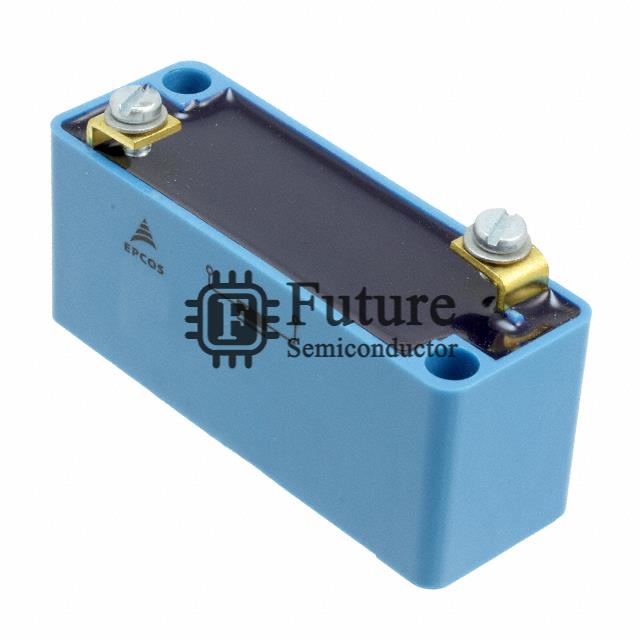

EPCOS (TDK) B82504WA16

Name: B82504WA16
Brand: EPCOS (TDK)
SKU: B82504WA16
Availability: InStock
Rating: 4.7 (415 reviews)

MFG Part Number: B82504WA16

Available Quantity: 32970 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: EPCOS (TDK)

Brief Description: B82504 CMC 120UH 16A 2LN CHAS MT

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: B82504WA16.pdf

Request Quotation for B82504WA16

Company Name

Contact Person

Phone Number

Address

Email

Message

B82504WA16 Specifications

Manufacturer Part Number	B82504WA16
Future Part Number	FT-B82504WA16
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	B82504
B82504WA16 Status (Lifecycle)	In Stock
Part Status	Obsolete
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	-
Inductance @ Frequency	120µH @ 100kHz
Current Rating (Max)	16A
DC Resistance (DCR) (Max)	19 mOhm (Typ)
Voltage Rating - DC	600V
Voltage Rating - AC	500V
Operating Temperature	-
Ratings	-
Approvals	-
Features	-
Mounting Type	Chassis Mount
Size / Dimension	3.071" L x 1.102" W (78.00mm x 28.00mm)
Height (Max)	1.457" (37.00mm)
Package / Case	-
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
B82504WA16 Weight	Contact Us
Replacement Part Number	B82504WA16-FT
