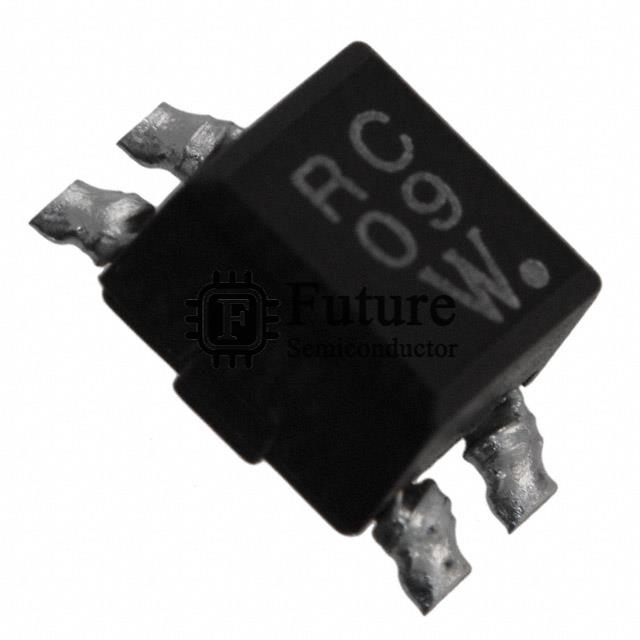

Taiyo Yuden CM04RC09T

Name: CM04RC09T
Brand: Taiyo Yuden
SKU: CM04RC09T
Availability: InStock
Rating: 4.7 (294 reviews)

MFG Part Number: CM04RC09T

Available Quantity: 22750 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Taiyo Yuden

Brief Description: CM04 CMC 3A 2LN 270 OHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CM04RC09T.pdf

Request Quotation for CM04RC09T

Company Name

Contact Person

Phone Number

Address

Email

Message

CM04RC09T Specifications

Manufacturer Part Number	CM04RC09T
Future Part Number	FT-CM04RC09T
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	CM04
CM04RC09T Status (Lifecycle)	In Stock
Part Status	Obsolete
Filter Type	Power, Signal Line
Number of Lines	2
Impedance @ Frequency	270 Ohms @ 200MHz
Inductance @ Frequency	-
Current Rating (Max)	3A
DC Resistance (DCR) (Max)	30 mOhm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-25°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.205" L x 0.354" W (5.20mm x 9.00mm)
Height (Max)	0.173" (4.40mm)
Package / Case	Horizontal, 4 Gull Wing
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CM04RC09T Weight	Contact Us
Replacement Part Number	CM04RC09T-FT
