Home / Products / Discrete Semiconductor Products / Transistors - IGBTs - Modules / CM225DX-24S1

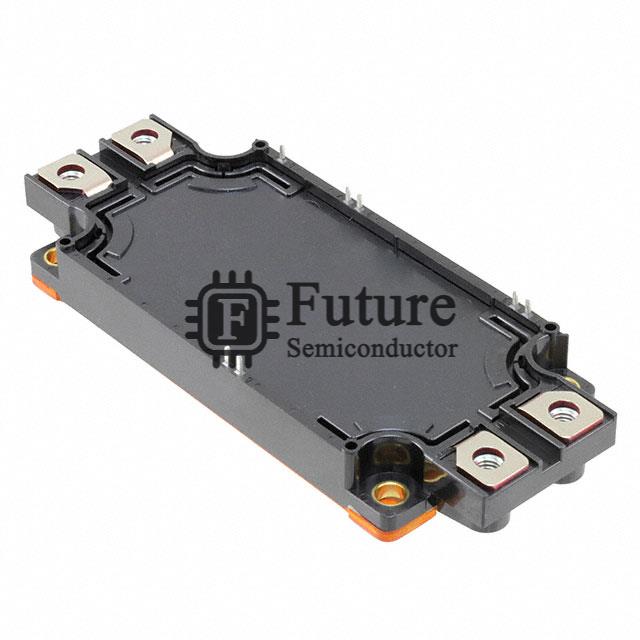

Powerex Inc. CM225DX-24S1
- MFG Part Number
- CM225DX-24S1
- Available Quantity
- 26260 Pieces
- Reference Price
- USD 77.048
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Powerex Inc.
- Brief Description
- - IGBT MOD NX 225A 1200V DUAL
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - IGBTs - Modules
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- CM225DX-24S1.pdf
CM225DX-24S1 Specifications
| Manufacturer Part Number | CM225DX-24S1 |
|---|---|
| Future Part Number | FT-CM225DX-24S1 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| CM225DX-24S1 Status (Lifecycle) | In Stock |
| Part Status | Discontinued at Future Semiconductor |
| IGBT Type | - |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 225A |
| Power - Max | 1250W |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 225A |
| Current - Collector Cutoff (Max) | 1mA |
| Input Capacitance (Cies) @ Vce | 20nF @ 10V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | - |
| Package / Case | Module |
| Supplier Device Package | Module |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| CM225DX-24S1 Weight | Contact Us |
| Replacement Part Number | CM225DX-24S1-FT |
