Home / Products / Inductors, Coils, Chokes / Arrays, Signal Transformers / CTX200-2P-R

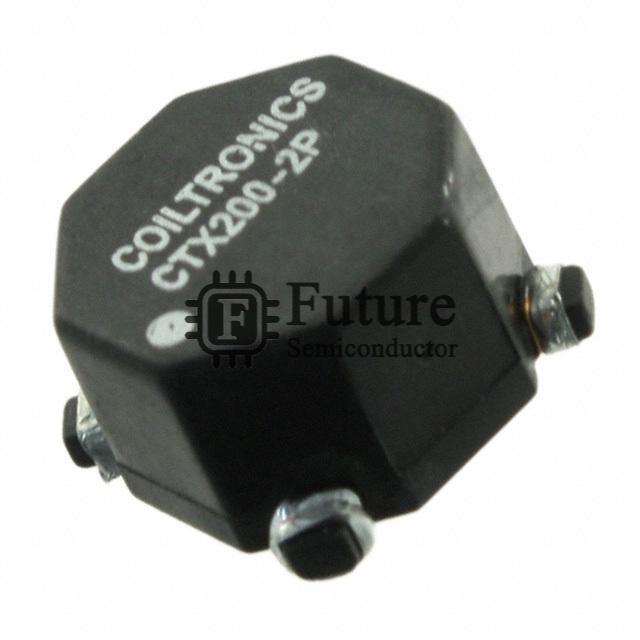

Eaton - Electronics Division CTX200-2P-R
- MFG Part Number
- CTX200-2P-R
- Available Quantity
- 11690 Pieces
- Reference Price
- USD 1.9406
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Eaton - Electronics Division
- Brief Description
- Econo-Pac™ INDUCT ARRAY 2 COIL 201.59UH SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Arrays, Signal Transformers
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- CTX200-2P-R.pdf
CTX200-2P-R Specifications
| Manufacturer Part Number | CTX200-2P-R |
|---|---|
| Future Part Number | FT-CTX200-2P-R |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | Econo-Pac™ |
| CTX200-2P-R Status (Lifecycle) | In Stock |
| Part Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 201.59µH |
| Inductance - Connected In Series | 806.34µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 460mA |
| Current Rating - Series | 230mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 951 mOhm Max |
| DC Resistance (DCR) - Series | 3.804 Ohm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Height | 0.235" (5.97mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| CTX200-2P-R Weight | Contact Us |
| Replacement Part Number | CTX200-2P-R-FT |
