Home / Products / Power Supplies - Board Mount / DC DC Converters / EHHD024A0A41Z

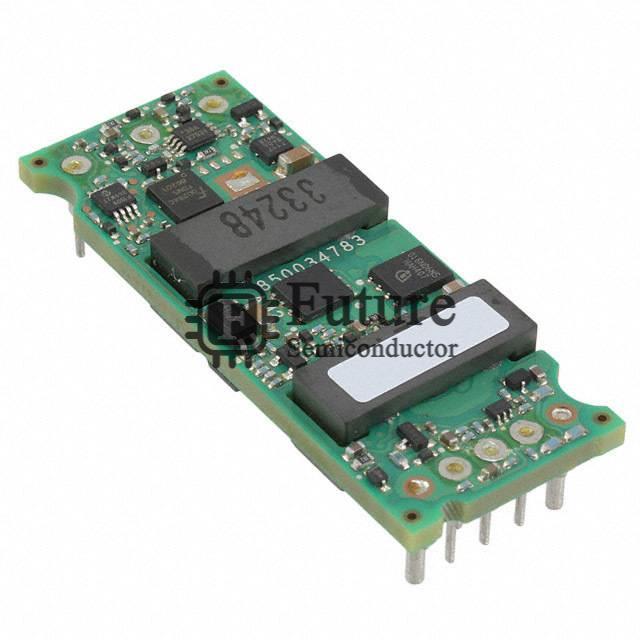

ABB Embedded Power EHHD024A0A41Z
- MFG Part Number
- EHHD024A0A41Z
- Available Quantity
- 52830 Pieces
- Reference Price
- USD 28.576
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- ABB Embedded Power
- Brief Description
- Hammerhead™ EHHD024A0A (120W) DC DC CONVERTER 5V 120W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- EHHD024A0A41Z.pdf
EHHD024A0A41Z Specifications
| Manufacturer Part Number | EHHD024A0A41Z |
|---|---|
| Future Part Number | FT-EHHD024A0A41Z |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | Hammerhead™ EHHD024A0A (120W) |
| EHHD024A0A41Z Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 24A |
| Power (Watts) | 120W |
| Voltage - Isolation | 2.25kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| EHHD024A0A41Z Weight | Contact Us |
| Replacement Part Number | EHHD024A0A41Z-FT |
