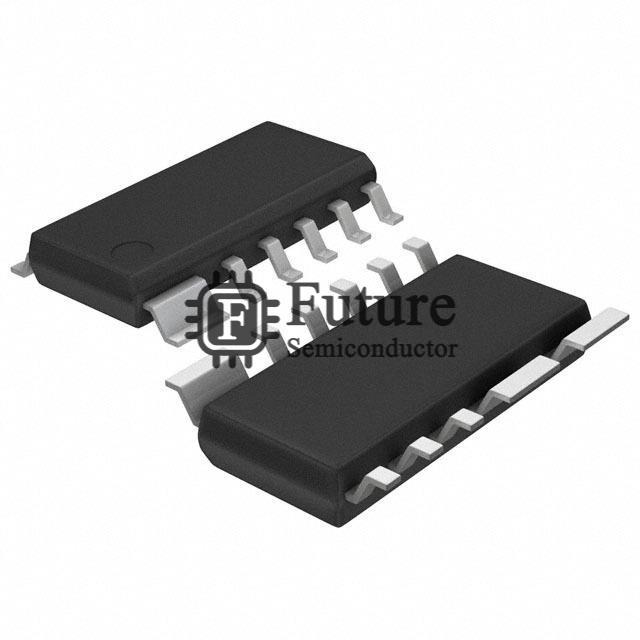

ON Semiconductor FDQ7698S

Name: FDQ7698S
Brand: ON Semiconductor
SKU: FDQ7698S
Availability: InStock
Rating: 4.6 (505 reviews)

MFG Part Number: FDQ7698S

Available Quantity: 39450 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: PowerTrench® MOSFET 2N-CH 30V 12A/15A 14SOIC

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: FDQ7698S.pdf

Request Quotation for FDQ7698S

Company Name

Contact Person

Phone Number

Address

Email

Message

FDQ7698S Specifications

Manufacturer Part Number	FDQ7698S
Future Part Number	FT-FDQ7698S
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PowerTrench®
FDQ7698S Status (Lifecycle)	In Stock
Part Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	12A, 15A
Rds On (Max) @ Id, Vgs	7.5 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	1324pF @ 15V
Power - Max	1.1W, 1.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads
Supplier Device Package	14-SO
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
FDQ7698S Weight	Contact Us
Replacement Part Number	FDQ7698S-FT
