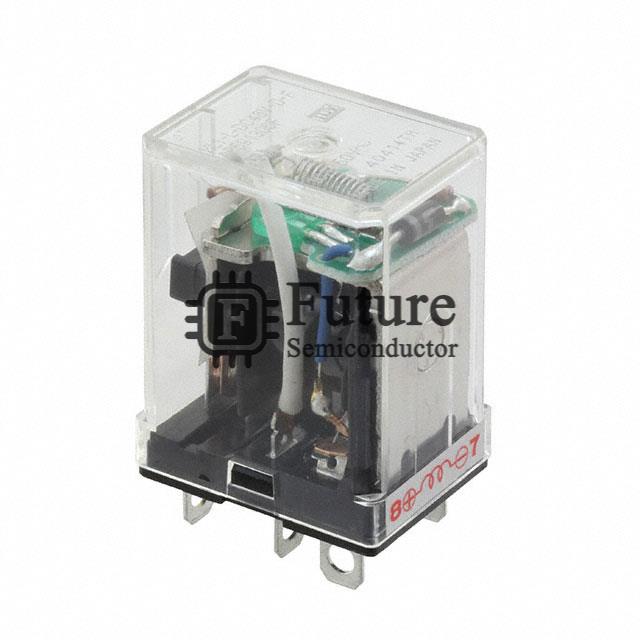

Panasonic Electric Works HL1-L-DC48V-D-F

Name: HL1-L-DC48V-D-F
Brand: Panasonic Electric Works
SKU: HL1-L-DC48V-D-F
Availability: InStock
Rating: 4.8 (206 reviews)

MFG Part Number: HL1-L-DC48V-D-F

Available Quantity: 11020 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electric Works

Brief Description: HL RELAY GEN PURPOSE SPDT 15A 48V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Power Relays, Over 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HL1-L-DC48V-D-F.pdf

Request Quotation for HL1-L-DC48V-D-F

Company Name

Contact Person

Phone Number

Address

Email

Message

HL1-L-DC48V-D-F Specifications

Manufacturer Part Number	HL1-L-DC48V-D-F
Future Part Number	FT-HL1-L-DC48V-D-F
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	HL
HL1-L-DC48V-D-F Status (Lifecycle)	In Stock
Part Status	Obsolete
Mounting Type	Socketable
Coil Voltage	48VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	15A
Switching Voltage	125VAC - Nom
Coil Current	18.5mA
Coil Type	Non Latching
Features	Diode, LED Indicator
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage	38.4 VDC
Must Release Voltage	4.8 VDC
Operate Time	25ms
Release Time	25ms
Operating Temperature	-50°C ~ 70°C
Contact Material	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HL1-L-DC48V-D-F Weight	Contact Us
Replacement Part Number	HL1-L-DC48V-D-F-FT
