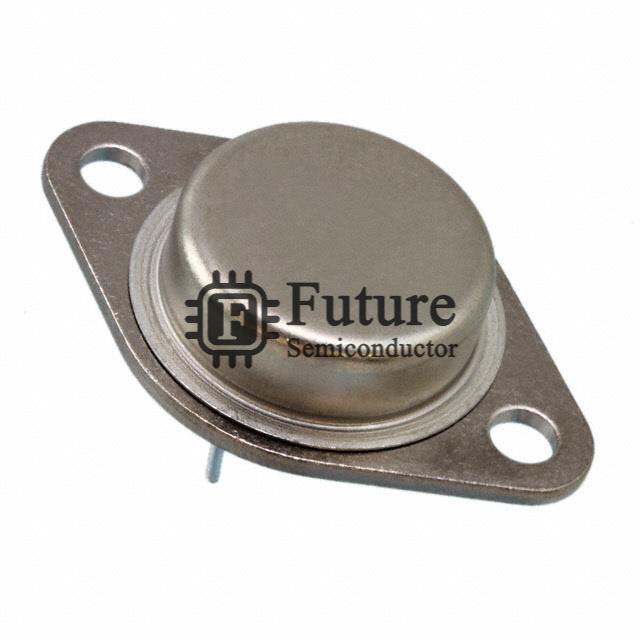

Microsemi Corporation JANTX2N5303

Name: JANTX2N5303
Brand: Microsemi Corporation
SKU: JANTX2N5303
Availability: InStock
Rating: 4.6 (375 reviews)

MFG Part Number: JANTX2N5303

Available Quantity: 70110 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: Military, MIL-PRF-19500/456 TRANS NPN 80V 20A TO-3

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - Bipolar (BJT) - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JANTX2N5303.pdf

Request Quotation for JANTX2N5303

Company Name

Contact Person

Phone Number

Address

Email

Message

JANTX2N5303 Specifications

Manufacturer Part Number	JANTX2N5303
Future Part Number	FT-JANTX2N5303
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-PRF-19500/456
JANTX2N5303 Status (Lifecycle)	In Stock
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	20A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	2V @ 4A, 20A
Current - Collector Cutoff (Max)	10µA
DC Current Gain (hFE) (Min) @ Ic, Vce	15 @ 10A, 2V
Power - Max	5W
Frequency - Transition	-
Operating Temperature	-
Mounting Type	Through Hole
Package / Case	TO-204AA, TO-3
Supplier Device Package	TO-3 (TO-204AA)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JANTX2N5303 Weight	Contact Us
Replacement Part Number	JANTX2N5303-FT
