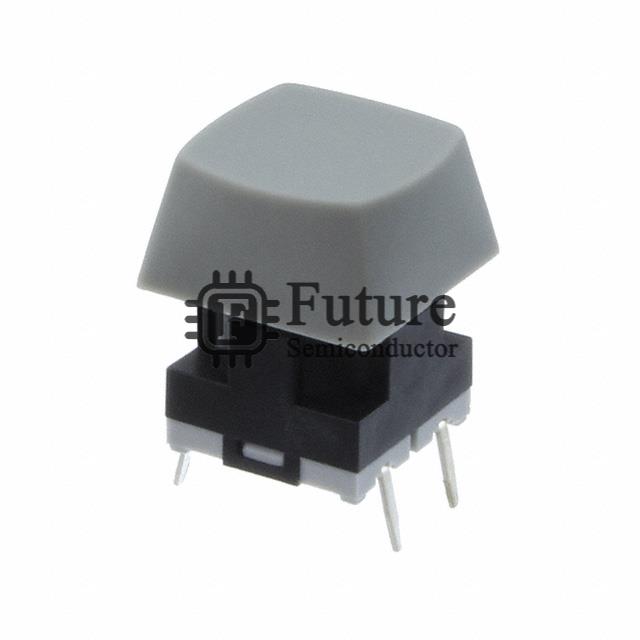

NKK Switches JB15HAP-1H

Name: JB15HAP-1H
Brand: NKK Switches
SKU: JB15HAP-1H
Price: 2.784 USD
Availability: InStock
Rating: 4.7 (535 reviews)

MFG Part Number: JB15HAP-1H

Available Quantity: 22710 Pieces

Reference Price: USD 2.784

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: JB SWITCH TACT SPST-NO 0.125A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Tactile Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JB15HAP-1H.pdf

Request Quotation for JB15HAP-1H

Company Name

Contact Person

Phone Number

Address

Email

Message

JB15HAP-1H Specifications

Manufacturer Part Number	JB15HAP-1H
Future Part Number	FT-JB15HAP-1H
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	JB
JB15HAP-1H Status (Lifecycle)	In Stock
Part Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.125A @ 24VDC
Actuator Type	Square Button
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	14.70mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	10.00mm x 10.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	265gf
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Process Sealed
Operating Temperature	-25°C ~ 70°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JB15HAP-1H Weight	Contact Us
Replacement Part Number	JB15HAP-1H-FT
