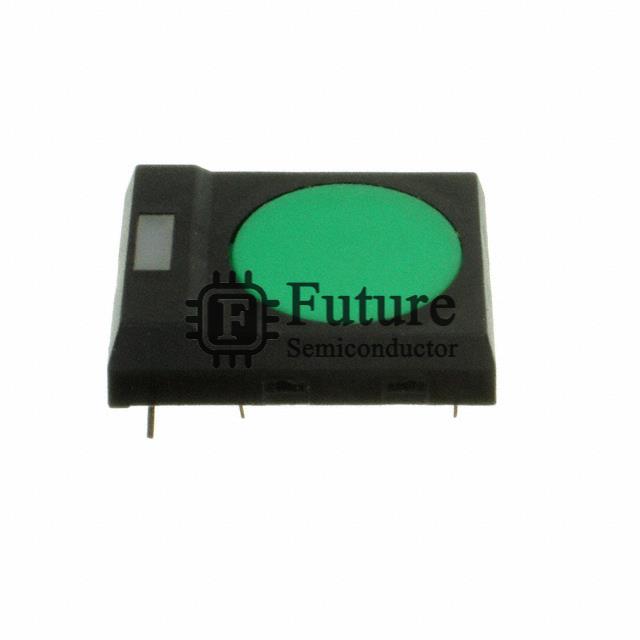

NKK Switches JF15RP2FC

Name: JF15RP2FC
Brand: NKK Switches
SKU: JF15RP2FC
Price: 3.16 USD
Availability: InStock
Rating: 4.6 (350 reviews)

MFG Part Number: JF15RP2FC

Available Quantity: 43110 Pieces

Reference Price: USD 3.16

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: JF SWITCH TACTILE SPST-NO 0.05A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Tactile Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JF15RP2FC.pdf

Request Quotation for JF15RP2FC

Company Name

Contact Person

Phone Number

Address

Email

Message

JF15RP2FC Specifications

Manufacturer Part Number	JF15RP2FC
Future Part Number	FT-JF15RP2FC
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	JF
JF15RP2FC Status (Lifecycle)	In Stock
Part Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Round Button
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	5.08mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	22.80mm x 17.70mm
Illumination	Illuminated
Illumination Type, Color	LED, Red
Illumination Voltage (Nominal)	1.7 VDC
Operating Force	300gf
Ingress Protection	-
Features	Process Sealed
Operating Temperature	-25°C ~ 70°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JF15RP2FC Weight	Contact Us
Replacement Part Number	JF15RP2FC-FT
