Home / Products / Relays / Signal Relays, Up to 2 Amps / JMGACDD-26L

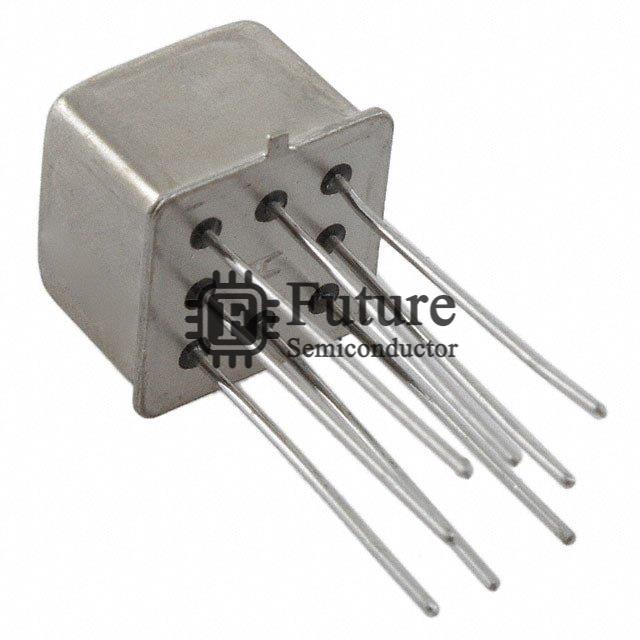

TE Connectivity Aerospace, Defense and Marine JMGACDD-26L

Name: JMGACDD-26L
Brand: TE Connectivity Aerospace, Defense and Marine
SKU: JMGACDD-26L
Price: 91.9088 USD
Availability: InStock
Rating: 4.9 (442 reviews)

MFG Part Number: JMGACDD-26L

Available Quantity: 81840 Pieces

Reference Price: USD 91.9088

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Brief Description: Military, MIL-R-39016/19, MGA, CII RELAY GEN PURPOS DPDT 1A 26.5VDC

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Signal Relays, Up to 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JMGACDD-26L.pdf

Request Quotation for JMGACDD-26L

Company Name

Contact Person

Phone Number

Address

Email

Message

JMGACDD-26L Specifications

Manufacturer Part Number	JMGACDD-26L
Future Part Number	FT-JMGACDD-26L
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-R-39016/19, MGA, CII
JMGACDD-26L Status (Lifecycle)	In Stock
Part Status	Active
Relay Type	General Purpose
Coil Type	Non Latching
Coil Current	-
Coil Voltage	26.5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1A
Switching Voltage	28VDC - Nom
Turn On Voltage (Max)	15.2 VDC
Turn Off Voltage (Min)	1.4 VDC
Operate Time	2ms
Release Time	4ms
Features	Sealed - Hermetically
Mounting Type	Through Hole
Termination Style	PC Pin
Operating Temperature	-65°C ~ 125°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JMGACDD-26L Weight	Contact Us
Replacement Part Number	JMGACDD-26L-FT
