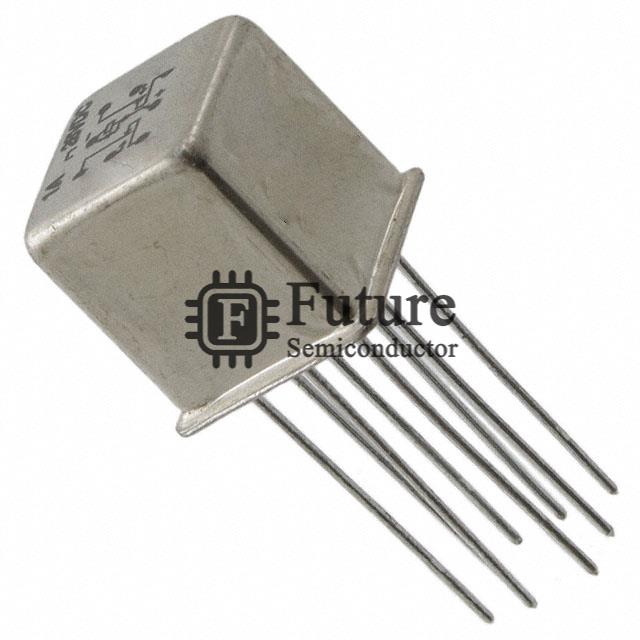

TE Connectivity Aerospace, Defense and Marine JMGSCDD-26PW
- MFG Part Number
- JMGSCDD-26PW
- Available Quantity
- 79510 Pieces
- Reference Price
- USD 102.617848
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- TE Connectivity Aerospace, Defense and Marine
- Brief Description
- Military, MIL-R-39016/43, MGS, CII RELAY GEN PURPOS DPDT 1A 26.5VDC
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Signal Relays, Up to 2 Amps
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- JMGSCDD-26PW.pdf
JMGSCDD-26PW Specifications
| Manufacturer Part Number | JMGSCDD-26PW |
|---|---|
| Future Part Number | FT-JMGSCDD-26PW |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | Military, MIL-R-39016/43, MGS, CII |
| JMGSCDD-26PW Status (Lifecycle) | In Stock |
| Part Status | Active |
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | - |
| Coil Voltage | 26.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1A |
| Switching Voltage | 28VDC - Nom |
| Turn On Voltage (Max) | 15.2 VDC |
| Turn Off Voltage (Min) | 1.3 VDC |
| Operate Time | 4ms |
| Release Time | 7.5ms |
| Features | Sealed - Hermetically |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -65°C ~ 125°C |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| JMGSCDD-26PW Weight | Contact Us |
| Replacement Part Number | JMGSCDD-26PW-FT |
