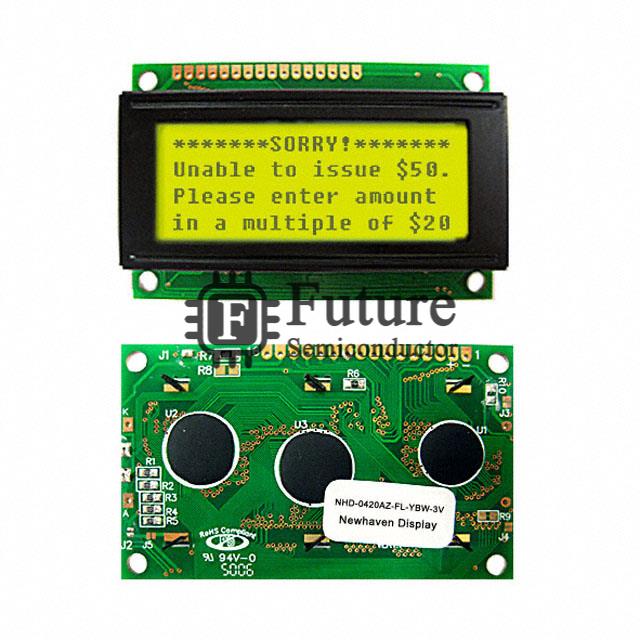

Newhaven Display Intl NHD-0420AZ-FL-YBW-3V
- MFG Part Number
- NHD-0420AZ-FL-YBW-3V
- Available Quantity
- 14340 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Newhaven Display Intl
- Brief Description
- - LCD MOD CHAR 4X20 Y/G TRANSFL
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Display Modules - LCD, OLED Character and Numeric
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- NHD-0420AZ-FL-YBW-3V.pdf
NHD-0420AZ-FL-YBW-3V Specifications
| Manufacturer Part Number | NHD-0420AZ-FL-YBW-3V |
|---|---|
| Future Part Number | FT-NHD-0420AZ-FL-YBW-3V |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| NHD-0420AZ-FL-YBW-3V Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| Number of Characters | 80 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.03mm H x 2.30mm W |
| Outline L x W x H | 77.00mm x 47.00mm x 14.50mm |
| Viewing Area | 60.00mm L x 22.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 2.7V ~ 3.3V |
| Dot Size | 0.42mm W x 0.46mm H |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Gray |
| Background Color | Green |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| NHD-0420AZ-FL-YBW-3V Weight | Contact Us |
| Replacement Part Number | NHD-0420AZ-FL-YBW-3V-FT |
