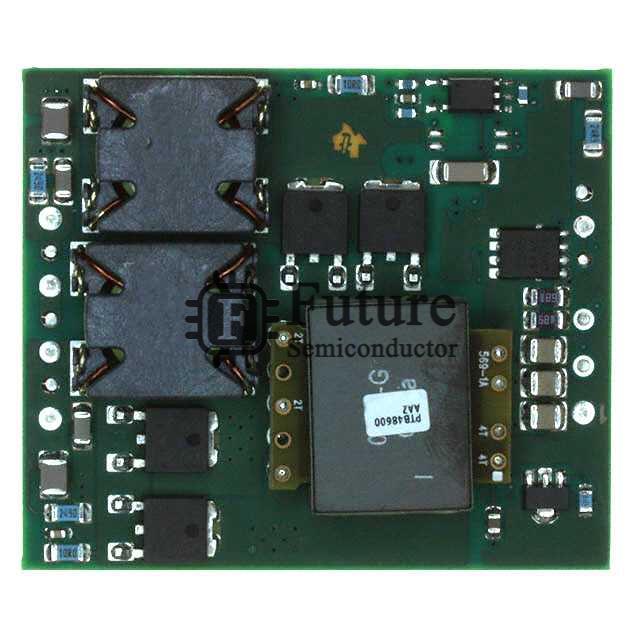

Texas Instruments PTB48600AAZ
- MFG Part Number
- PTB48600AAZ
- Available Quantity
- 53650 Pieces
- Reference Price
- USD 83.68
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Texas Instruments
- Brief Description
- PTB48600 (85W) DC DC CONVERTER /-5V 85W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PTB48600AAZ.pdf
PTB48600AAZ Specifications
| Manufacturer Part Number | PTB48600AAZ |
|---|---|
| Future Part Number | FT-PTB48600AAZ |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PTB48600 (85W) |
| PTB48600AAZ Status (Lifecycle) | In Stock |
| Part Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.5A, 8.5A |
| Power (Watts) | 85W |
| Voltage - Isolation | 1.5kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 85% |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module |
| Size / Dimension | 2.22" L x 1.89" W x 0.50" H (56.4mm x 48.0mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PTB48600AAZ Weight | Contact Us |
| Replacement Part Number | PTB48600AAZ-FT |
