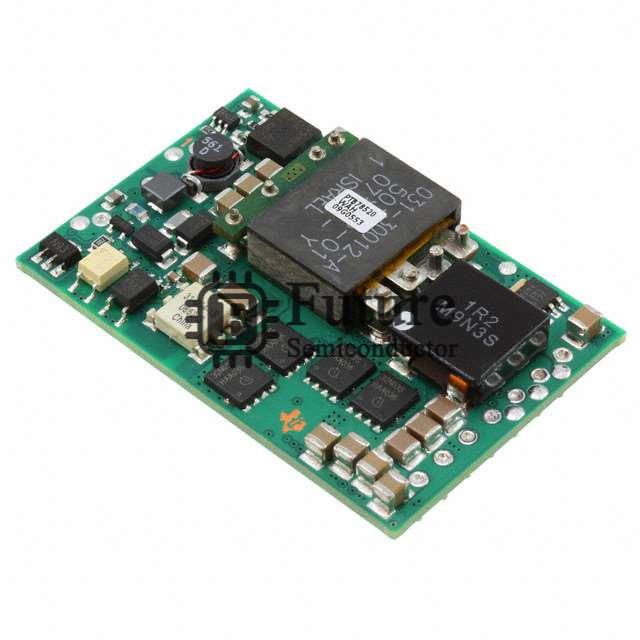

Texas Instruments PTB78520WAH
- MFG Part Number
- PTB78520WAH
- Available Quantity
- 34320 Pieces
- Reference Price
- USD 123.527112
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Texas Instruments
- Brief Description
- PTB78520W DC DC CONVERTER 1.8-3.6V 72W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PTB78520WAH.pdf
PTB78520WAH Specifications
| Manufacturer Part Number | PTB78520WAH |
|---|---|
| Future Part Number | FT-PTB78520WAH |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PTB78520W |
| PTB78520WAH Status (Lifecycle) | In Stock |
| Part Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 1.8 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 72W |
| Voltage - Isolation | 1.5kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP Module |
| Size / Dimension | 2.22" L x 1.45" W x 0.47" H (56.4mm x 36.8mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PTB78520WAH Weight | Contact Us |
| Replacement Part Number | PTB78520WAH-FT |
