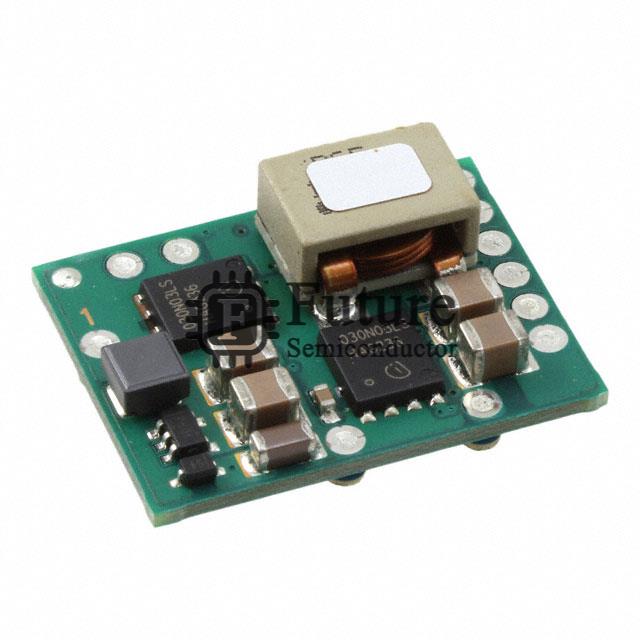

Texas Instruments PTH04T220WAZ

Name: PTH04T220WAZ
Brand: Texas Instruments
SKU: PTH04T220WAZ
Price: 16.648 USD
Availability: InStock
Rating: 4.8 (681 reviews)

MFG Part Number: PTH04T220WAZ

Available Quantity: 68290 Pieces

Reference Price: USD 16.648

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Texas Instruments

Brief Description: PTH04T220W DC DC CONVERTER 0.69-3.6V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: DC DC Converters

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PTH04T220WAZ.pdf

Request Quotation for PTH04T220WAZ

Company Name

Contact Person

Phone Number

Address

Email

Message

PTH04T220WAZ Specifications

Manufacturer Part Number	PTH04T220WAZ
Future Part Number	FT-PTH04T220WAZ
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PTH04T220W
PTH04T220WAZ Status (Lifecycle)	In Stock
Part Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.2V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.69 ~ 3.6V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	16A
Power (Watts)	-
Voltage - Isolation	-
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Operating Temperature	-40°C ~ 85°C
Efficiency	94%
Mounting Type	Surface Mount
Package / Case	11-SMD Module
Size / Dimension	1.00" L x 0.75" W x 0.36" H (25.4mm x 19.1mm x 9.1mm)
Supplier Device Package	-
Control Features	-
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PTH04T220WAZ Weight	Contact Us
Replacement Part Number	PTH04T220WAZ-FT
