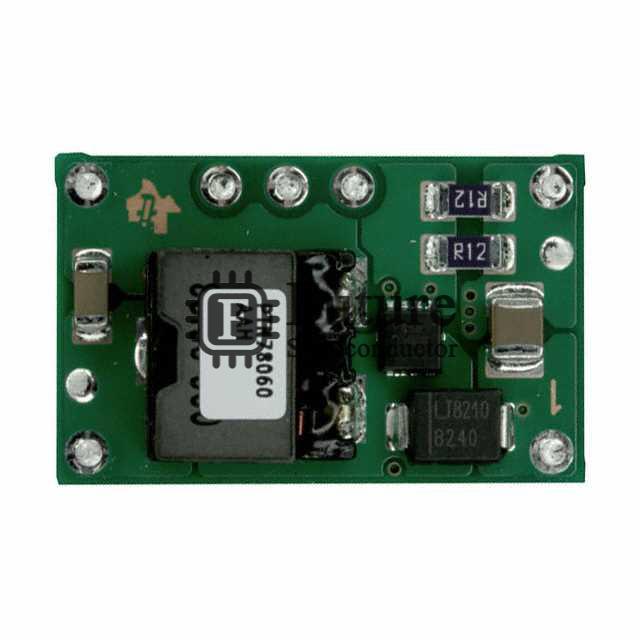

Texas Instruments PTN78060AAH
- MFG Part Number
- PTN78060AAH
- Available Quantity
- 57970 Pieces
- Reference Price
- USD 19.984
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Texas Instruments
- Brief Description
- PTN78060A (15W) DC DC CONVERTER -15 TO -3V
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PTN78060AAH.pdf
PTN78060AAH Specifications
| Manufacturer Part Number | PTN78060AAH |
|---|---|
| Future Part Number | FT-PTN78060AAH |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PTN78060A (15W) |
| PTN78060AAH Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 28.7V |
| Voltage - Output 1 | -15 ~ -3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PTN78060AAH Weight | Contact Us |
| Replacement Part Number | PTN78060AAH-FT |
