Home / Products / Filters / Common Mode Chokes / RB6522-50-0M3

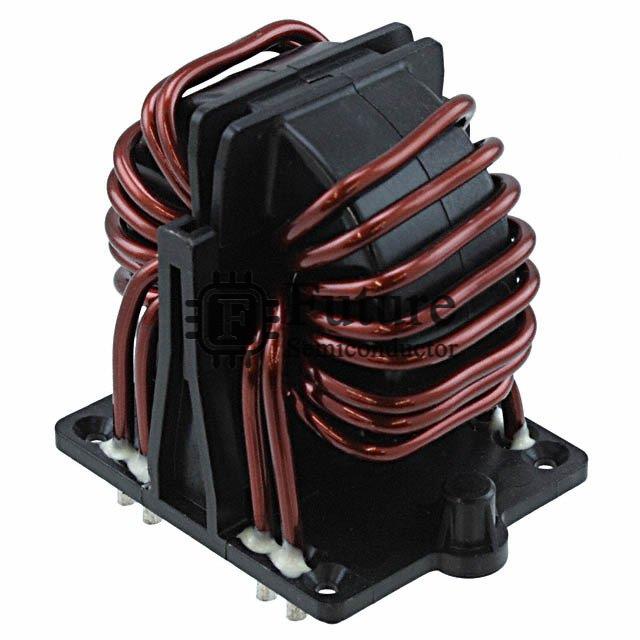

Schaffner EMC Inc. RB6522-50-0M3
- MFG Part Number
- RB6522-50-0M3
- Available Quantity
- 98410 Pieces
- Reference Price
- USD 10.648
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Schaffner EMC Inc.
- Brief Description
- RB CMC 250UH 50A 2LN TH
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Common Mode Chokes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- RB6522-50-0M3.pdf
RB6522-50-0M3 Specifications
| Manufacturer Part Number | RB6522-50-0M3 |
|---|---|
| Future Part Number | FT-RB6522-50-0M3 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | RB |
| RB6522-50-0M3 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 250µH @ 400Hz |
| Current Rating (Max) | 50A |
| DC Resistance (DCR) (Max) | 0.9 mOhm (Typ) |
| Voltage Rating - DC | 1000V (1kV) |
| Voltage Rating - AC | 600V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approvals | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.969" L x 1.709" W (50.00mm x 43.40mm) |
| Height (Max) | 2.283" (58.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| RB6522-50-0M3 Weight | Contact Us |
| Replacement Part Number | RB6522-50-0M3-FT |
