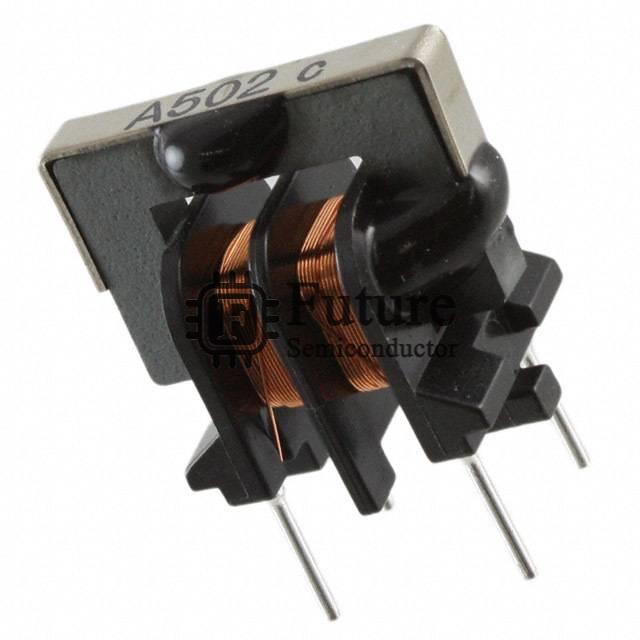

Taiyo Yuden TLF9UA502WR32K1

Name: TLF9UA502WR32K1
Brand: Taiyo Yuden
SKU: TLF9UA502WR32K1
Price: 0.68 USD
Availability: InStock
Rating: 4.8 (535 reviews)

MFG Part Number: TLF9UA502WR32K1

Available Quantity: 15950 Pieces

Reference Price: USD 0.68

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Taiyo Yuden

Brief Description: TLF9 CMC 5MH 320MA 2LN TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: TLF9UA502WR32K1.pdf

Request Quotation for TLF9UA502WR32K1

Company Name

Contact Person

Phone Number

Address

Email

Message

TLF9UA502WR32K1 Specifications

Manufacturer Part Number	TLF9UA502WR32K1
Future Part Number	FT-TLF9UA502WR32K1
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	TLF9
TLF9UA502WR32K1 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	-
Inductance @ Frequency	5mH @ 1kHz
Current Rating (Max)	320mA
DC Resistance (DCR) (Max)	2.5 Ohm
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-25°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max)	0.630" (16.00mm)
Package / Case	Vertical, 4 PC Pin
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
TLF9UA502WR32K1 Weight	Contact Us
Replacement Part Number	TLF9UA502WR32K1-FT
